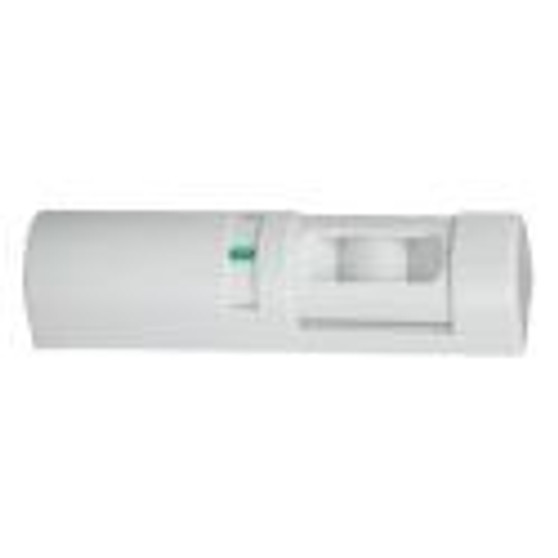

Bosch DS150i Series Request-to-Exit Detector

Log in for pricing

Write a Review
SKU:
DS150i
Shipping:
Calculated at Checkout

Product Description

Descriptions:

  • Single or double door use
  • Wall or ceiling mountable
  • Internal vertical pointability
  • Wrap-around coverage pattern
  • Selectable relay trigger mode
  • Selectable fail safe/fail secure modes

Technical Specifications:



Electrical
Current Draw:26mA at 12VDC
Voltage:12VAC or VDC; 24VAC or VDC
Mechanical
Alarm Output:Two Form C relay contacts
Indicators:One activation LED
Relay Latch Time:Adjustable 60 sec
Enclosure Dimensions:3.8cm x 15.9cm x 3.8cm
(1.5in. x 6.25in. x 1.5in.)
Enclosure Material:High impact ABS plastic enclosure
Power Loss Default Mode:Programmable fail-safe or fail-secure modes.
Timer Mode:Programmable reset (accumulative) or non-reset (counting) mode.
Mounting Locations:Surface mount on wall or ceiling
Environmental
Operating Temperature:-29oC to +49oC (-20oF to +120oF)
Radio Frequency Interference (RFI) Immunity:No alarm or setup on critical frequencies in the range from 26MHz to 1000MHz at 50V/m.
