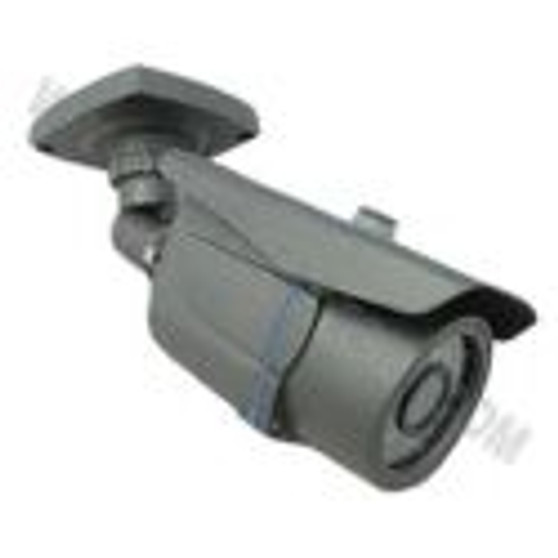

600TVL with 24 Pieces IR LEDs & Automatic Day & Night ICR Filter Weatherproof Nightvision 3.6 mm Wide Angle Lens Security CCTV Compact Bullet Camera (Grey Color)

$119.99
Write a Review
SKU:
UC224B-G36
Shipping:
Calculated at Checkout

Product Description


IP66 Rated for indoor and outdoor application.

UC224D Bullet Camera has built-in Automatic Mechanical IR Cut Filter "ICR" & 24 IR LEDs. It offers "True Natural Color in the Day" and  "See in total Darkness at night"

With its HDIS Sensor, Greater than 60dB S/N Ratio and Megapixel Lens, UC224B delivers sharp, bright and noise free images at 600 TVL Resolution





  • 600 TV Lines
  • 3.6mm Fixed Lens
  • Automatic Mechanical IR Cut Filter
  • 24 LED Smart Array
  • IR distance up to 45ft
  • Smart IR Nightvision without over-exposure
  • Photodiode design for accurate IR LED trigger activation
  • Double glass: Effectively reducing the internal reflection
  • Aluminum alloy housing for better heat dissipation
  • Weatherproof IP-66 rating for indoor/outdoor application
  • 12VDC @ 300ma Max
(Note: Design and specifications are subject to change without prior notice)

  ►  Model Number : UC224B-G36
Image Pick-up Device:1/3" HDIS Sensor (High Definition Image Sensor) with ICR Mechanical Filter
Total Pixels:720(H) × 480(V)
Video Output:NTSC 1Vp-p / 75 Ohm composite
Resolution:600 TV Lines
Minimum Illumination:0.1 Lux / F1.2 (0.0Lux 42IRE)
S/N Ratio:More than 60dB (AGC Off)
Electronic Shutter Speed:NTSC 1/60 - 1/100,000sec PAL: 1/50-1/100000sec
Synchronization:Internal
Scanning System:2.1 Interlace
IR Trigger:3.1 lux / 3.75 lux IR ON/OFF
Auto White Balance:1800oK ~ 10500oK
Effective Pixels:720(H) x 480(V)
Infrared Luminary:24 pieces IR LEDs
Weight:N.W: 0.3.kg
Illuminate Distance:Up to about 45ft
Lens:3.6mm Fixed Lens
Power Consumption:300mA
Power Supply:12V DC
Operating Temp.:-10°C to 60°C (14°F to 140°F)
Waterproofing criterion:IP-66
Dimension:170mm(L) x 62mm(W) x 75mm(H)
