Product Description
• 1/1.8'' Ultra High Definition CMOS Sensor with OmniVision PureCel Technology
• H.264/H.265 Compression Method
• Support Onvif 2.4
• 3.6-11mm 3X Motorized Zoom Auto Focus Lens
• IR Distance 120 Feet Max.
• IP66 Outdoor Metal Case
Image Sensor 1/1.8'' Ultra High Definition CMOS Sensor with OmniVision PureCel Technology
Resolution 8MP
Effective Pixels 3840(H)*2160(V)
Compression H.264/H.264+/H.265/H.265+/JPEG/AVI /MJPEG
TV System PAL/NTSC
Electronic Shutter Time Auto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec
Minimun Illumination 0.01Lux
S/N Ratio ≥52dB
Scanning System Progressive
Video Output Network
Reset Button Optional
Focus Length 3.6-11mm
Focus Control Auto
Lens Type Motorized
Pixels 8MP
Infrared LED 42µ x 6PCS
Infrared Distance 60M
IR Status Auto Control
IR Power On Auto Control
Ethernet RJ-45 (10/100Base-T)
Protocol TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, SMTP
ONVIF Support ONVIF 2.4
POE Internal, Support IEEE 802.3af
Video Delay 0.3S (Within the Lan)
Main Stream 1 3840*2160 @20fps
3072*2048@30fps
Main Stream 2 2592*1944@30fps
2560*1920@30fps
Main Stream 3
2560*1440@30fps
1920*1080@30fps
1280*720@30fps
Sub Stream 1 720*480@20fps
720*480@30fps
Sub Stream 2 /
Sub Stream 3 /
Tri Stream 352*288@20fps
352*288@30fps
IE Brower IE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53), Mac Safari(lower than version 12)
Smart Phone iPhone, iPad, Android, Android Pad
Day/Night Color/ B&W (IR-CUT )
Intelligence function /
Image Config Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, FLK(Flicker Control), Video Tampering
Starlight /
Corridor Pattern Support
Defog Mode Support
ROI Support
BLC Support
HDR /
WDR DWDR: 50dB
Motion Detection Support
Privacy Masking 3 Rectangular Zone
Recording Mode NVR/CMS/Web
Language Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Farsi, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew,
Italian,Nederlands,Czech, Vietnamese
Audio 2-Way Audio
Alarm 1channel Input/Ouput
SD Card Slot Yes, Support Max 128GB
RS485 /
Housing Metal ,IP66
Anti-cut Bracket Optional
IR Cut Filter YES
Operation Temperature -20℃ ~ +60℃ RH95% Max
Storage Temperature -20℃ ~ +60℃ RH95% Max
Power Source DC12V±10%, 1100mA

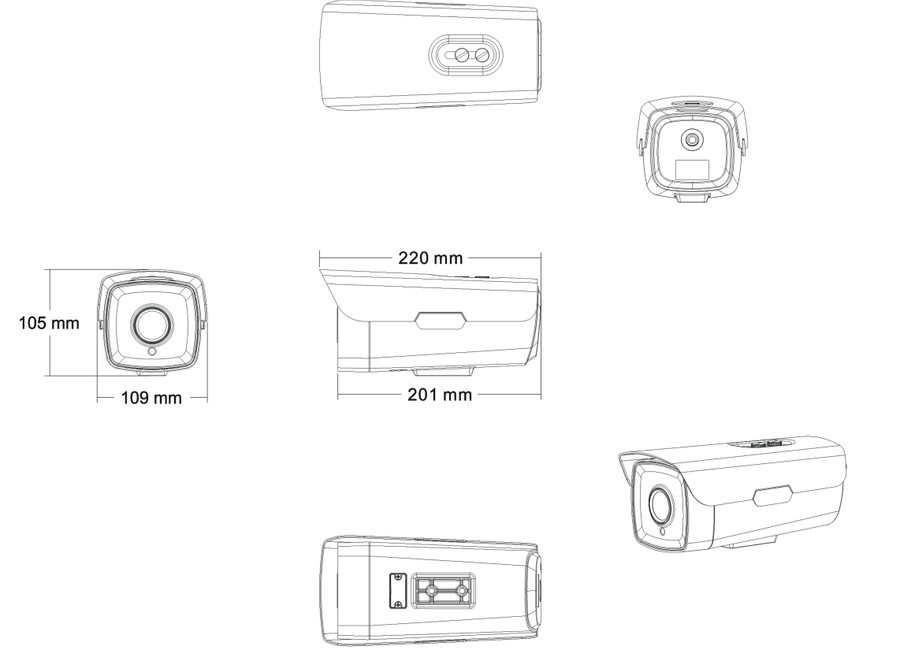

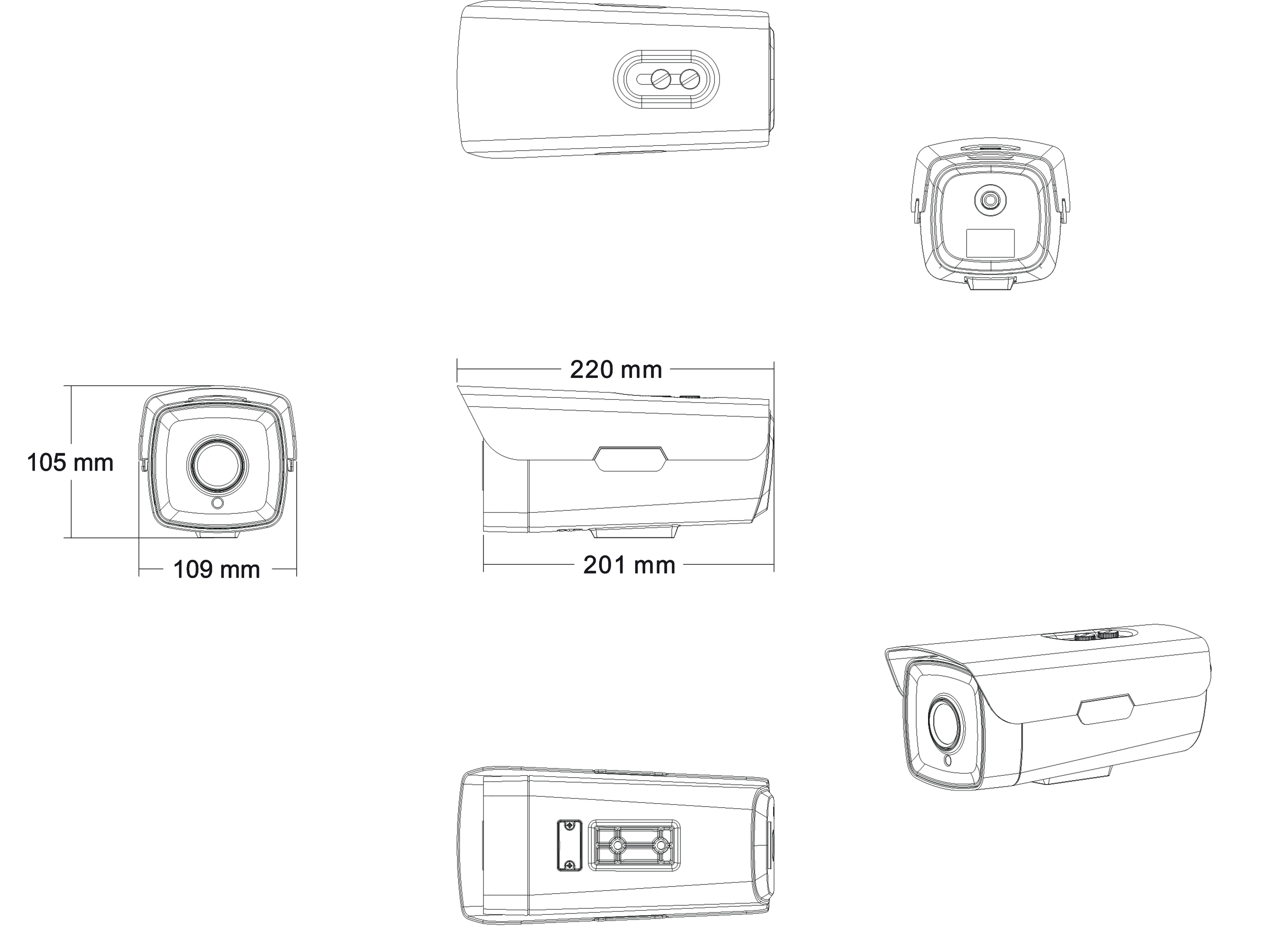

Dimension 220(W) x 109(H) x 105(D)mm
Weight 1650g
