1/3" Sony HQ1, 550/570 TV Lines, 0.1Lux, AVF 3.5-8mm Lens, Day & Night

Log in for pricing

Write a Review
Calculated at Checkout

Product Description

1/3" Sony HQ1, 550/570 TV Lines, 0.1Lux, AVF 3.5-8mm Lens, Day & Night

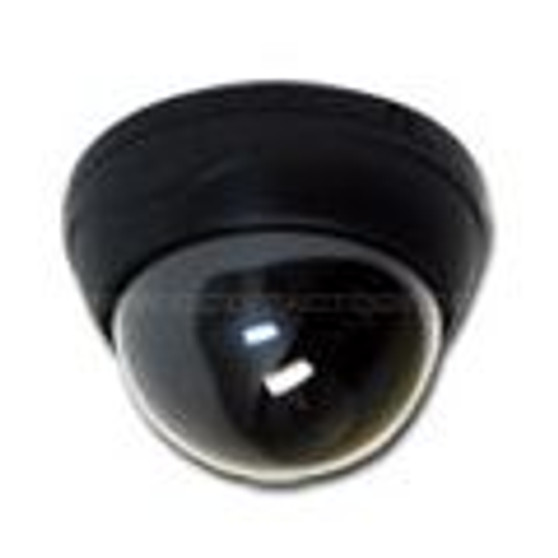

This is a Professional Grade Color Dome camera employs 1/3" SONY Super HAD CCD sensor and Built-in DC-drive Auto iris Vari-focal lens. It's micro motor auto adjust iris to the change of brightness.  It has 0.1 Lux rating for ultimate low light viewing. Installation is easy with built-in Vari-focal lens, you have flexibility to view from 30~120 Degree. It offers exceptional value and professional image quality.

Built-in Japanese Tamron High End Lens

High Resolution 550 Lines

Vari-focal DC-Drive Auto Iris Lens 3.5 - 8.0mm

Plug n Play.

Image Quality: 5-Stars

Ease of Installation: 5-Stars

Warranty: 1 year




  • Color camera with SONY 1/3" HQ1 CCD sensor in Medium Dome.

  • Pixel number: NTSC=380K

  • High sensitivity, low smear, high anti-blooming.

  • Auto Electronic Shutter (AES), Auto Gain Control (AGC), Auto Iris (AI), Back Light Compensation (BLC), Auto White Balance (AWB), Flickerless mode (FL).

  • Built-in Vari-focal type DC-drive auto iris lens.

  • Furnished with DC power cable and video cable.

  • DC type, low power consumption.

  • Easy to install, easy to use, aesthetic.

  • Product dimension: 4.17(W)x3.15(H) Inches / 106x80 mm


  Model No. UCHQ1-ZDNH :
Image Pick-up Device:SONY 1/3" HQ1 CCD sensor.
Effective Picture Elements:NTSC: 811*508
Horizontal Resolution:550 TV lines
Minimum Illumination:0.1 LUX @ F1.2
S/N Ratio:More than 48dB
Auto Electronic Shutter:NTSC: 1/50 (1/60)s~1/100,000s, ON/OFF switchable.
Auto Iris Control:DC Drive Iris Control.
Flickerless Mode:NTSC: 1/100s, ON/OFF switchable.
Gamma Characteristic:0.45
Lens Furnished:Vari-Focal with DC Drive Iris Lens.
Focal Length & Aperture Ratio:3.5~8.0mm/F1.6~360
Auto Gain Control:High / Low switchable.
Auto White Balance:Yes. (2500k~9500k)
Back Light Compensation:ON/OFF switchable.
Synchronous System:Internal, Negative sync.
Video Output:1 Vp-p / 75 Ohms.
Audio output (Optional):2 Vp-p / 50 Ohms.
Power Supply:DC 12V
Operating Temp.:-10°C to 50°C (14°F to 122°F)
